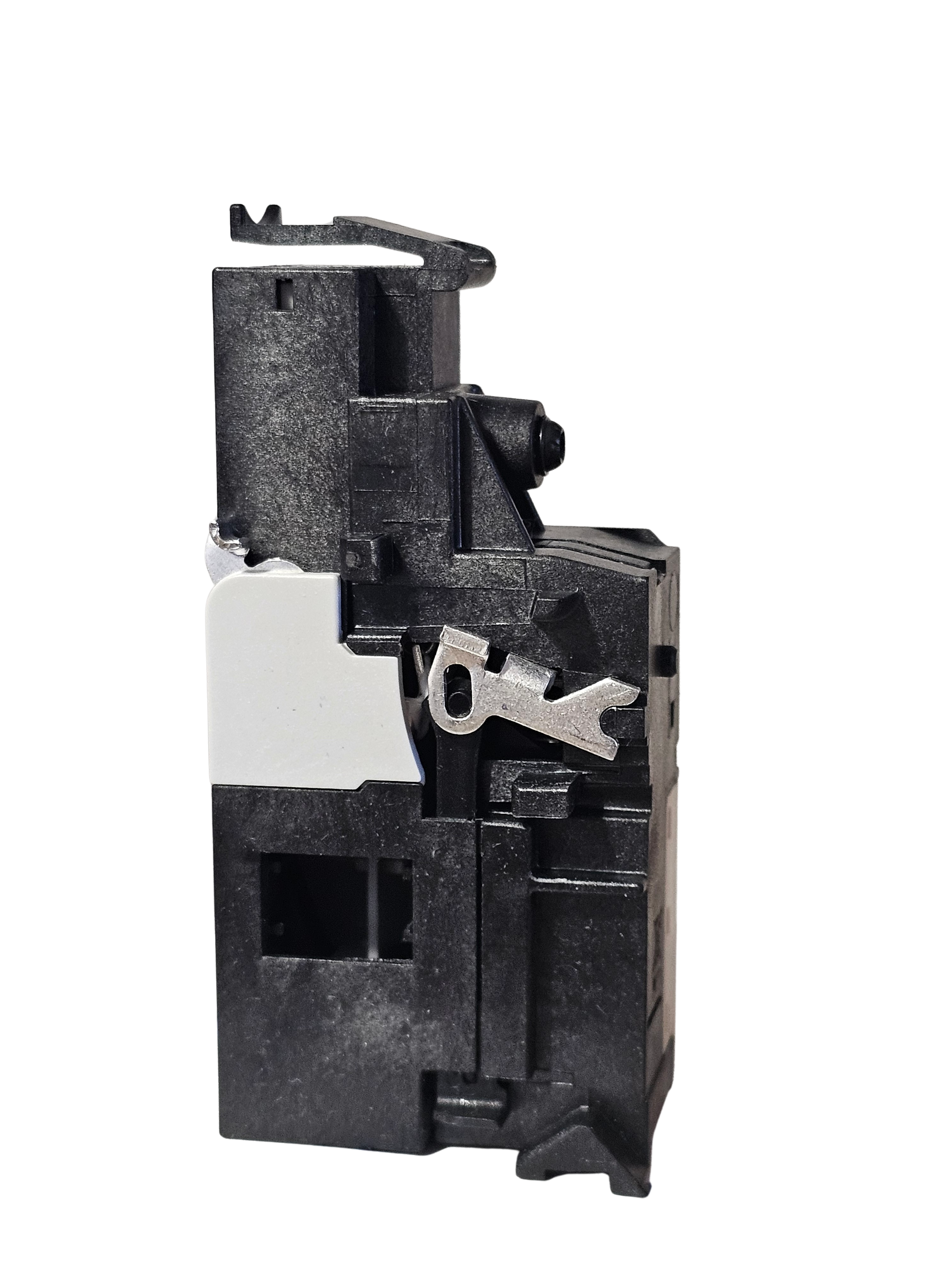

NZM2/3-XU24DC Bobina minima 24 V DC 259509 Y7-259509 EATON ELECTRIC
$273.500
Hasta 12 pagos sin tarjeta con Mercado Pago.
Saber más
Compra con Mercado Pago sin tarjeta y paga mes a mes
1
2
3
Crédito sujeto a aprobación.
¿Tienes dudas? Consulta nuestra Ayuda.
Comparte este producto:
Descripción
Bobina de mínima, 24 V DC
Eaton Moeller series NZM – Molded Case Circuit Breaker. Undervoltage release, 24 V DC, 2/3
NZM2/3-XU24DC
259509
Y7-259509
EATON-MOELLER
Datos técnicos – eléctricos
Voltage type
DC
Rated control voltage (relay contacts)
24 V DC
Rated control supply voltage
24 V DC
Rated control supply voltage (Us) at AC, 50 Hz – min
0 V
Rated control supply voltage (Us) at AC, 50 Hz – max
0 V
Rated control supply voltage (Us) at AC, 60 Hz – min
0 V
Rated control supply voltage (Us) at AC, 60 Hz – max
0 V
Rated control supply voltage (Us) at DC – min
24 V
Rated control supply voltage (Us) at DC – max
24 V
Voltage tolerance – min
.85
Voltage tolerance – max
1.1
Drop-out voltage of undervoltage release AC/DC – min
0.35 x Us
Drop-out voltage of undervoltage release AC/DC – max
0.7 x Us
Power consumption
1.5 VA (sealing AC)
0.8 W (sealing DC)
0.8 W (sealing DC)
Pick-up power consumption at AC (undervoltage release)
1.5 VA
Pick-up power consumption at DC (undervoltage release)
0.8 W
Reaction time
19 ms
Minimum command time – min
10 ms
Minimum command time – max
15 ms
Electric connection type
Screw connection
Información adicional
| Peso | 1 kg |
|---|---|
| Dimensiones | 15 × 15 × 15 cm |
